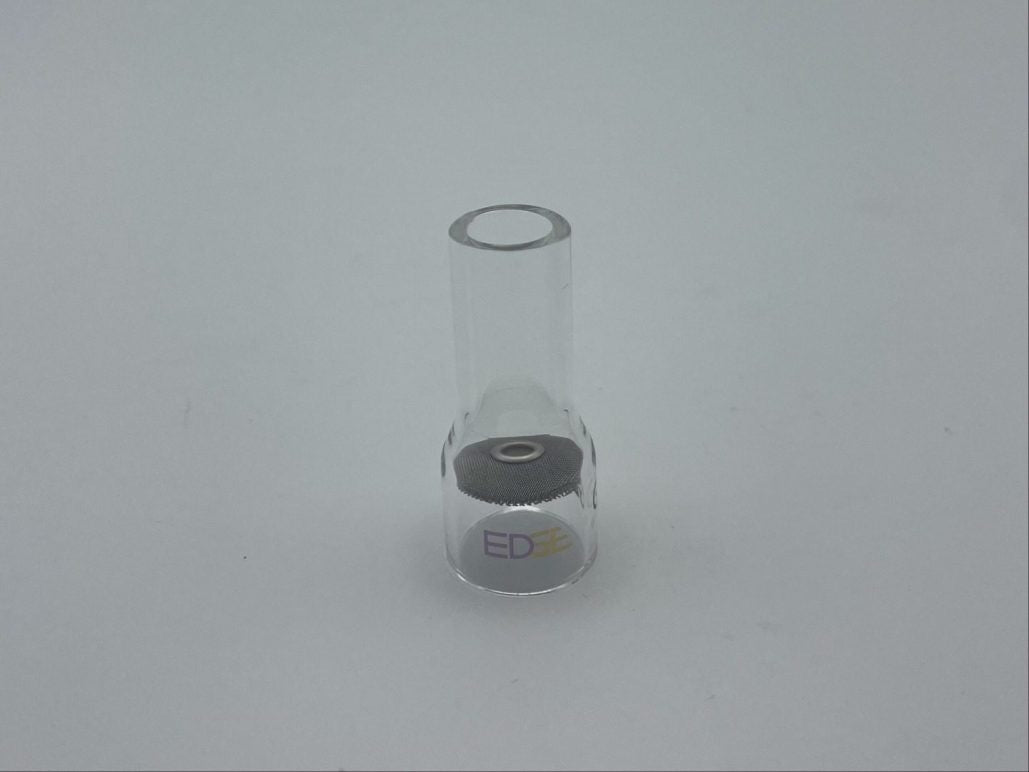

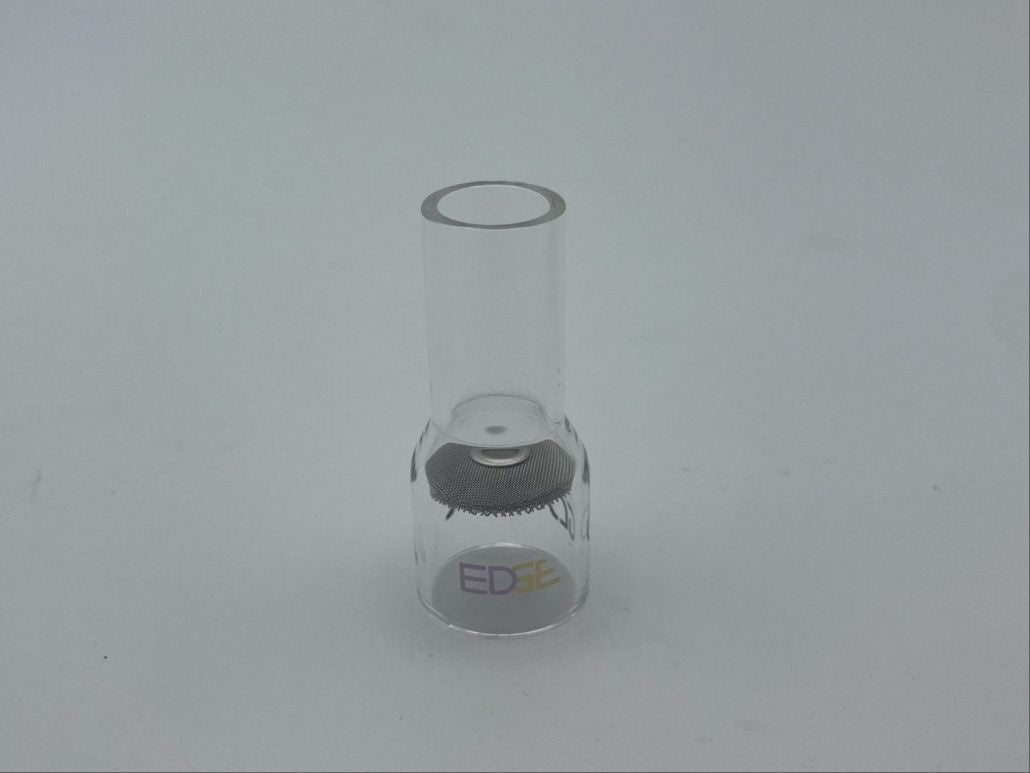

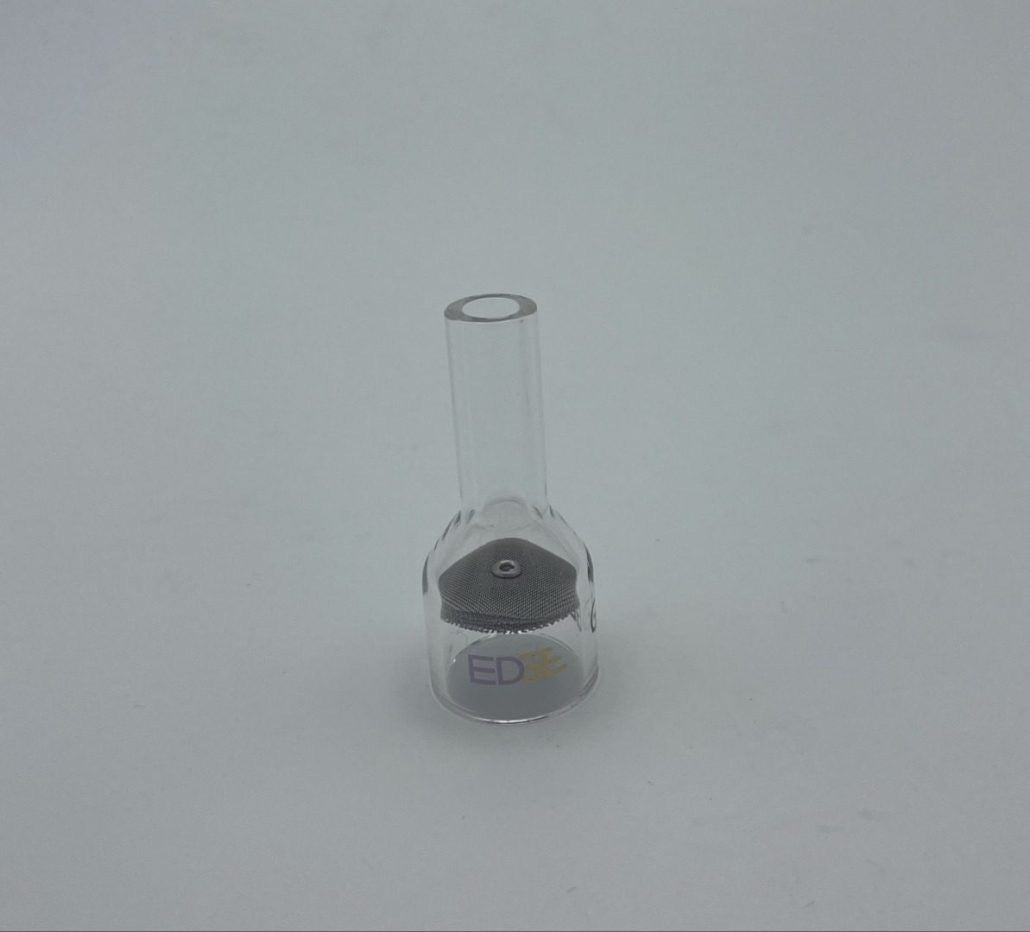

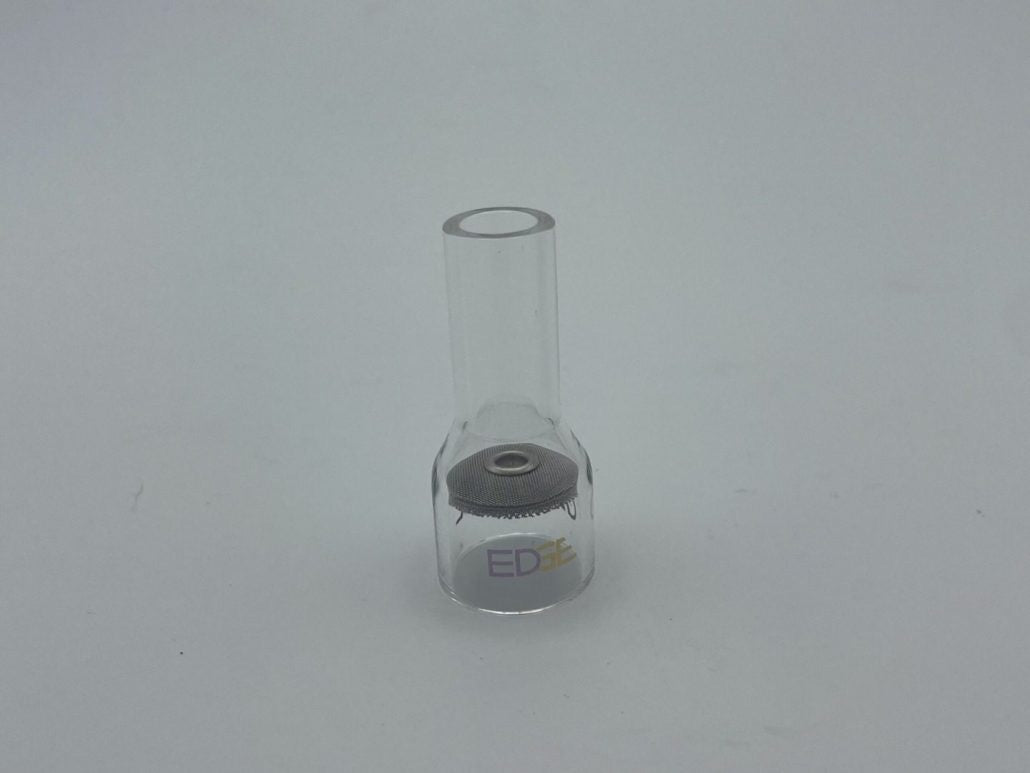

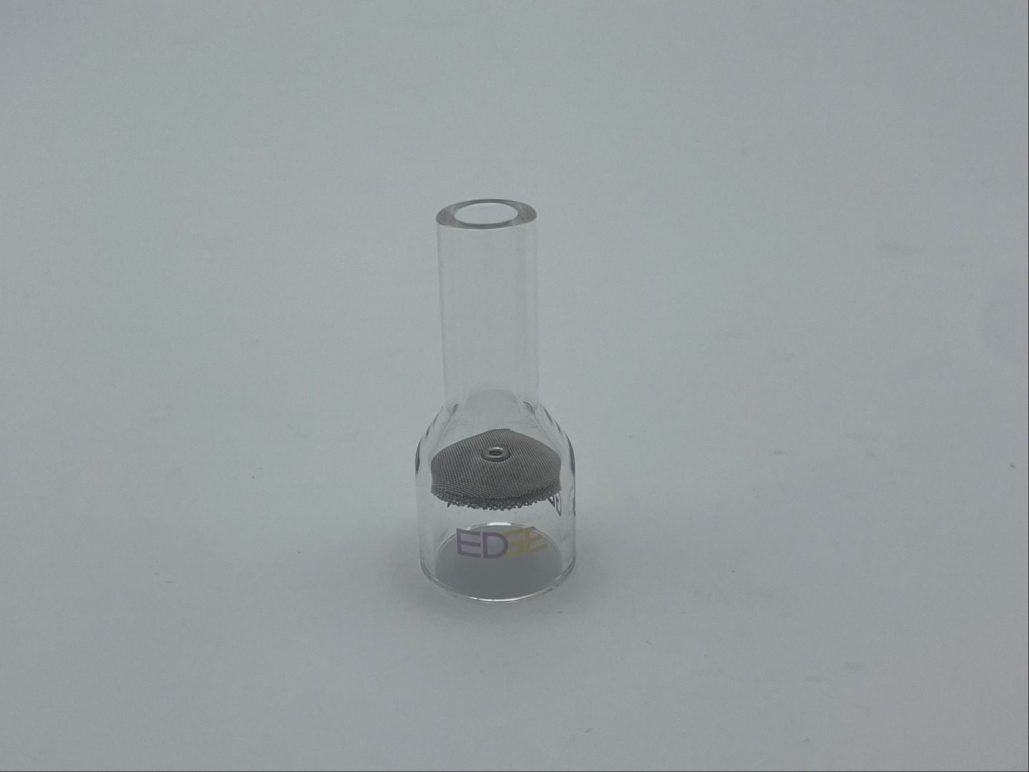

Engineered for Extended Reach. XR TIG Cups Built for Laminar Flow.
XR TIG cups deliver extended reach and laminar gas flow for welders who need precision in tight spaces. The EDGE X-Tended Reach (XR) Series delivers the same precision laminar gas flow as our LF Series — now with an extended reach body designed for tight joints, restricted access, and deep groove welding.
At 2" overall length, the XR gives you the reach you need without sacrificing gas coverage or visibility. Every XR TIG cups order ships with a matched diffuser included, so you're ready to weld right out of the box.
Key Benefits of XR TIG cups
- Extended Reach Body – 2" overall length for access to tight joints, inside corners, and deep grooves that standard cups can't reach.
- Laminar Gas Flow – Engineered gas path delivers smooth, consistent shielding gas coverage for cleaner welds.
- Diffuser Included – Each cup ships with a matched diffuser — no separate purchase required.
- Greater Tungsten Stick-Out – Improved visibility and access to the weld puddle.
- Cleaner Welds – Reduced turbulence means less contamination on stainless, titanium, Inconel, and other critical alloys.
Specifications
- Overall Length: 2 inches
- Material: Pyrex
- Available Sizes: #4, #5, #6, #7, #8
- Diffuser Sizes: 1/16", 3/32", 1/8", 5/32"
What Makes EDGE Different
- Laminar Flow Technology – Precision-engineered internal geometry promotes laminar (non-turbulent) gas flow for maximum shielding effectiveness.
- Hand-Made in the USA – Each cup is individually crafted and inspected for quality and consistency.
- Precision Fit – Designed to work with the EDGE aluminum GL-A adapter for a secure, leak-free connection.
- Heat Treated – Enhanced durability for demanding welding environments.
Torch Compatibility
XR Series cups are compatible with WP9, WP20, WP25, WP17, WP18, and WP26 series TIG torches when used with the EDGE aluminum GL-A adapter (sold separately).
Recommended Applications
- Stainless steel
- Titanium
- Inconel and nickel-based alloys
- Aluminum
- Any application requiring access to tight or restricted weld joints

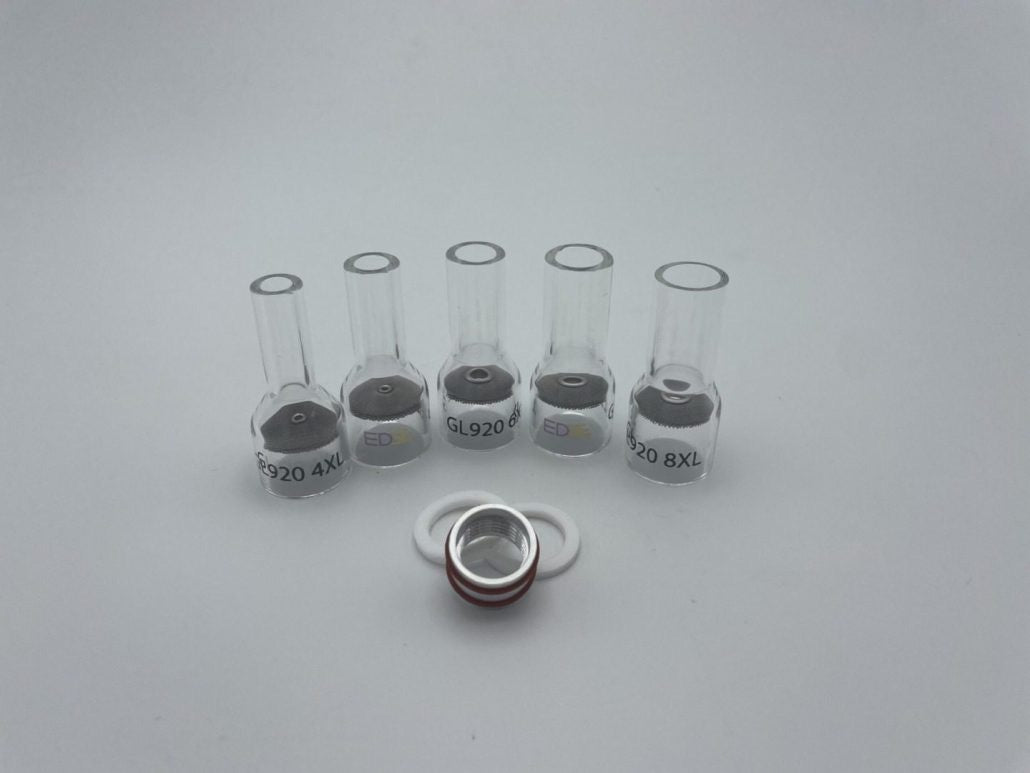

Complete Kit Option
The XR Complete Kit includes all 5 cup sizes (#4–#8), the EDGE aluminum GL-A adapter, o-rings, and thermal spacers — everything you need to get started with the XR Series in one package. Whether you need a single 3 4 cup size or the full set, this kit covers every situation.
Setup Guidelines
- Install the EDGE aluminum GL-A adapter onto your TIG torch before attaching the XR cup.
- Select the correct diffuser size to match your tungsten diameter.
- Set gas flow rate per your standard procedure — laminar flow typically allows lower flow rates with equivalent or better coverage.
- Inspect o-rings periodically and replace as needed to maintain a proper seal.
Note: XR Series cups are Pyrex only. Quartz is available in this series by special request. Always use the EDGE aluminum GL-A adapter for proper fit and performance. Welders like tig notaro trust precision tools — and the XR Series is built to that same standard.
