Home » Uniweld Ameriflame RF2480-580 Single Stage Argon Flowmeter Regulator - CGA-580

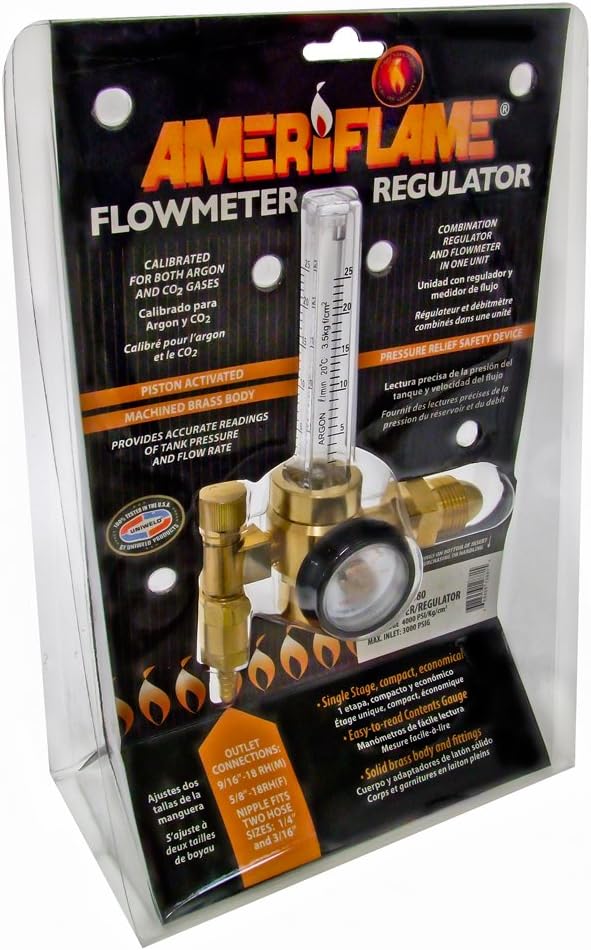

Ameriflame flowmeter regulator in retail packaging, brass body, for Argon CO2 gas welding

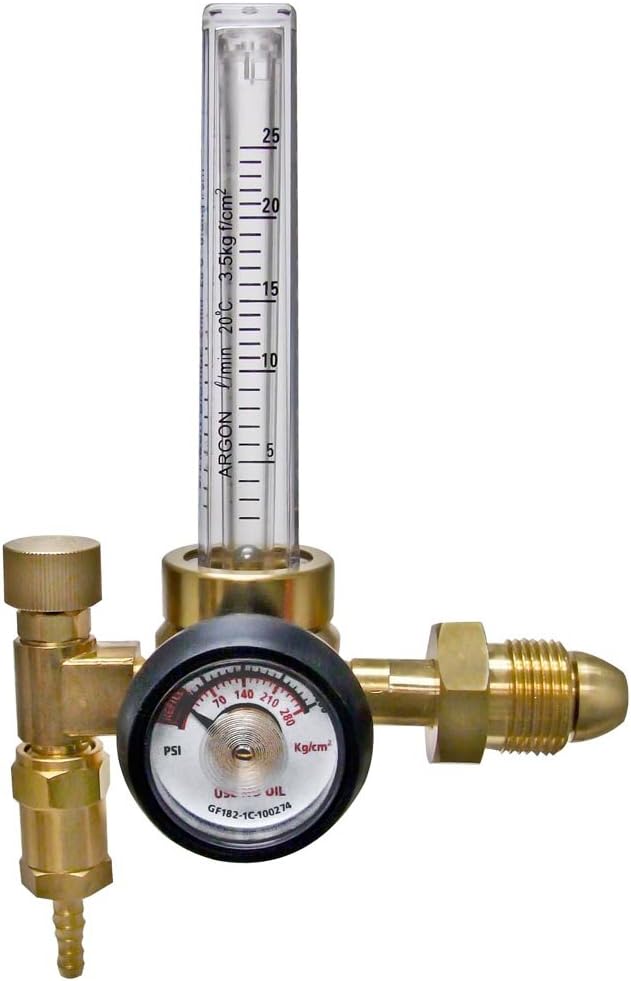

Argon gas flow meter regulator with pressure gauge and brass fittings for welding

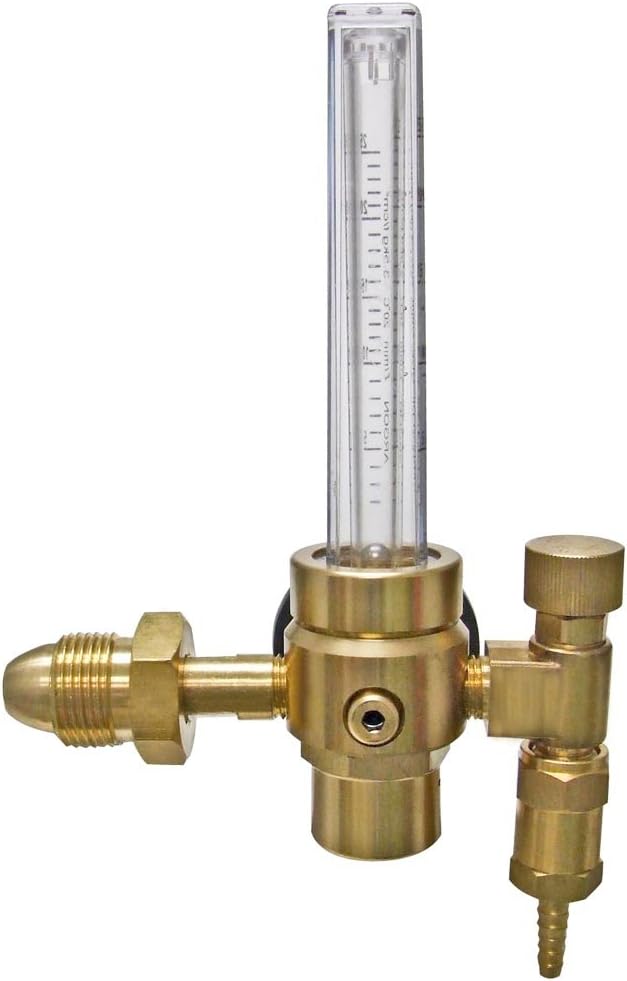

Brass gas flow meter regulator with pressure gauge for welding equipment
Ameriflame flowmeter regulator in retail packaging, brass body, for Argon CO2 gas welding
Argon gas flow meter regulator with pressure gauge and brass fittings for welding
Brass gas flow meter regulator with pressure gauge for welding equipment

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Uniweld

Uniweld Ameriflame RF2480-580 Single Stage Argon Flowmeter Regulator - CGA-580

SKU: RF2480-580
(0)
$72.00
-35% $110.46 $72.00
Only 1 left
Low inventory - Hurry up!

Find the right solution for your setup

Need Help Choosing the Right Setup?

Choosing the right equipment depends on your application, material, and welding conditions.

  • For more control and precision → use smaller components and tighter setups
  • For more coverage and larger welds → use larger setups and higher gas flow
  • For high-heat applications (like aluminum) → use materials designed to handle increased temperatures
  • For tight spaces → use more compact profiles

If you’re unsure what you need, start with a complete setup or kit and build from there.

Got questions?

Feel free to get in touch

Questions? Contact us.

Video chat Chat Email 704-663-0101

Professional-Grade Uniweld Ameriflame RF2480-580 Single Stage Argon Flowmeter Regulator - Combination regulator and flowmeter in one compact unit designed for cylinder-mounted argon gas applications. Ideal for TIG welding and other precision gas flow applications requiring accurate flow control from 10 to 70 scfh.

Why Choose Uniweld Ameriflame RF2480-580?

  • Combination Unit - Regulator and flowmeter integrated into one convenient device
  • Versatile Gas Compatibility - Works with Argon, Carbon Dioxide, Helium, and Nitrogen
  • Precise Flow Control - Adjustable delivery from 10 to 70 scfh for accurate gas flow management
  • High Pressure Capacity - Handles inlet pressures up to 3,000 psi with 4,000 psi gauge
  • Durable Brass Construction - Heavy-duty brass body for long-lasting performance
  • Easy-to-Read Gauges - 1-1/2" diameter gauges for clear pressure monitoring
  • Standard CGA-580 Connection - Compatible with standard argon cylinders
  • Light to Heavy Duty Applications - Suitable for a wide range of welding and gas applications

Technical Specifications:

  • Model Number: RF2480-580
  • Series: Ameriflame
  • Body Material: Brass
  • Diaphragm Material: Neoprene
  • Number of Stages: Single Stage
  • Maximum Inlet Pressure: 3,000 psig
  • Supply Pressure Gauge: 0 to 4,000 psi
  • Maximum Outlet Pressure: 50 psig
  • Flow Rate Range: 10 to 70 scfh
  • Maximum Flow Rate (Argon): 70 scfh
  • Maximum Flow Rate (Carbon Dioxide): 70 scfh
  • Maximum Flow Rate (Helium): 70 scfh
  • Maximum Flow Rate (Nitrogen): 70 scfh
  • Gauge Size: 1-1/2 inch diameter
  • Inlet Connection: CGA-580 (0.965"-14 NGO, Male, Right Hand)
  • Outlet Connection: 5/8"-18 UNF Female
  • Overall Length: 7-7/8 inches
  • Weight: 1.86 lbs
  • Country of Origin: China

Compatible Gases:

  • Argon (primary application)
  • Carbon Dioxide
  • Helium
  • Nitrogen

Perfect For:

  • TIG welding applications
  • MIG welding with argon or mixed gases
  • Plasma cutting operations
  • Professional fabrication shops
  • Industrial welding operations
  • Automotive repair and manufacturing
  • General purpose gas flow control

Trusted by welding professionals - The Uniweld Ameriflame RF2480-580 delivers precise flow control and reliable performance for demanding welding applications. Order your argon flowmeter regulator today!
