Genuine EDGE™ MAXSHIELD™ 5-Cup TIG Kit – Maximum Shielding Coverage
The Genuine EDGE™ MAXSHIELD™ 5-Cup TIG Kit combines five large-coverage EDGE Laminar Flow Pyrex TIG cups for applications requiring increased shielding coverage, extended tungsten reach, and greater protection of the weld area.
Featuring #12S, #15S, #18S, #21S, and #23 cups, MAXSHIELD provides progressively larger shielding envelopes for stainless steel, chromoly, titanium, Inconel, and other reactive or exotic alloys. Components for both WP-9/WP-20/WP-25 and WP-17/WP-18/WP-26 torch platforms are included and matched to the selected tungsten size.
Key Benefits
- Five levels of shielding coverage from #12 through #23
- Extended tungsten capability for difficult-to-access welds
- EDGE Laminar Flow technology for controlled, consistent shielding gas distribution
- Large shielding envelopes for titanium, Inconel, and other demanding alloys
- Clear Pyrex construction for excellent weld-puddle visibility
- Components for both major TIG torch platforms
- Gas lenses, collets, and replacement diffusers matched to the selected tungsten size
Cup Selection Guide
- #12S — Up to approximately 2.5 in tungsten extension — Suggested starting point: 25 SCFH
- #15S — Up to approximately 3.0 in — 30 SCFH
- #18S — Up to approximately 3.5 in — 38 SCFH
- #21S — Up to approximately 4.0 in — 45 SCFH
- #23 — Up to approximately 4.5 in — 50 SCFH

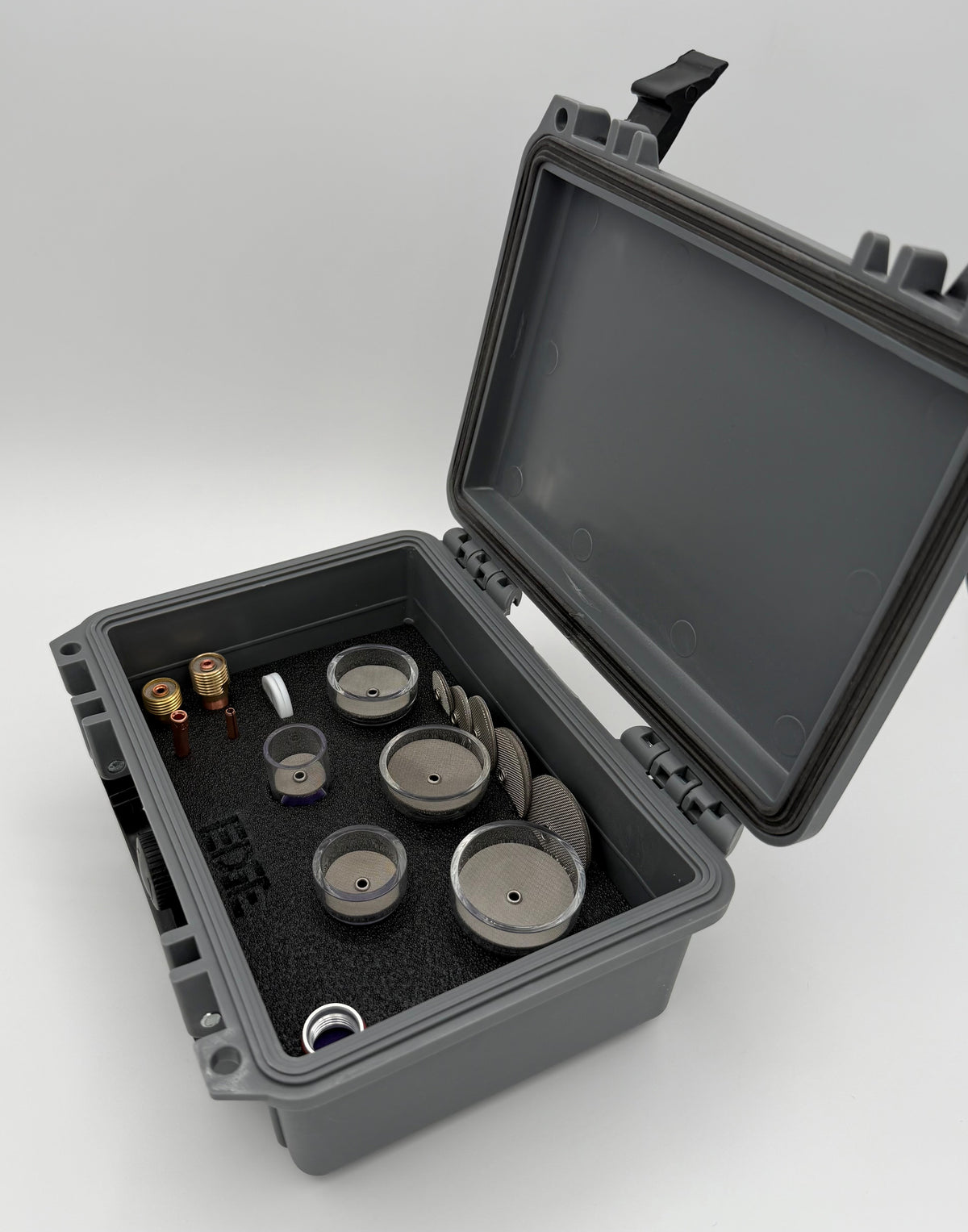

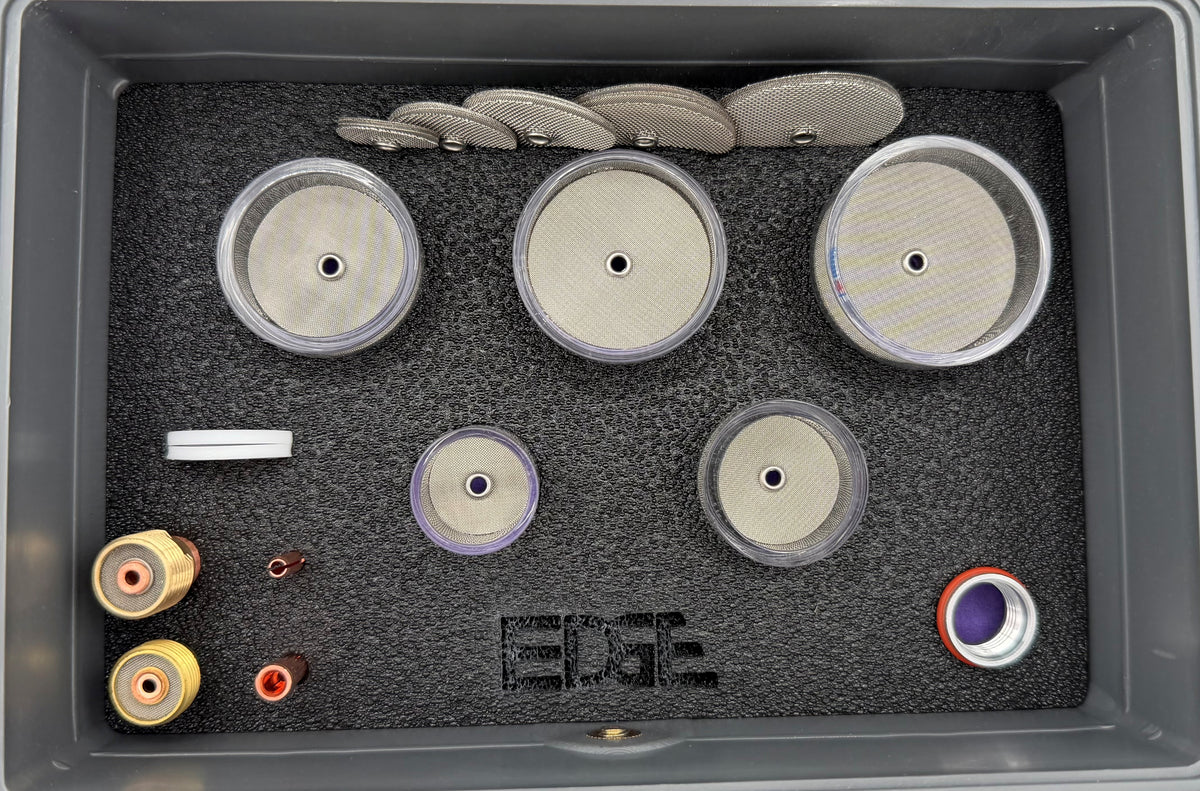

What's Included

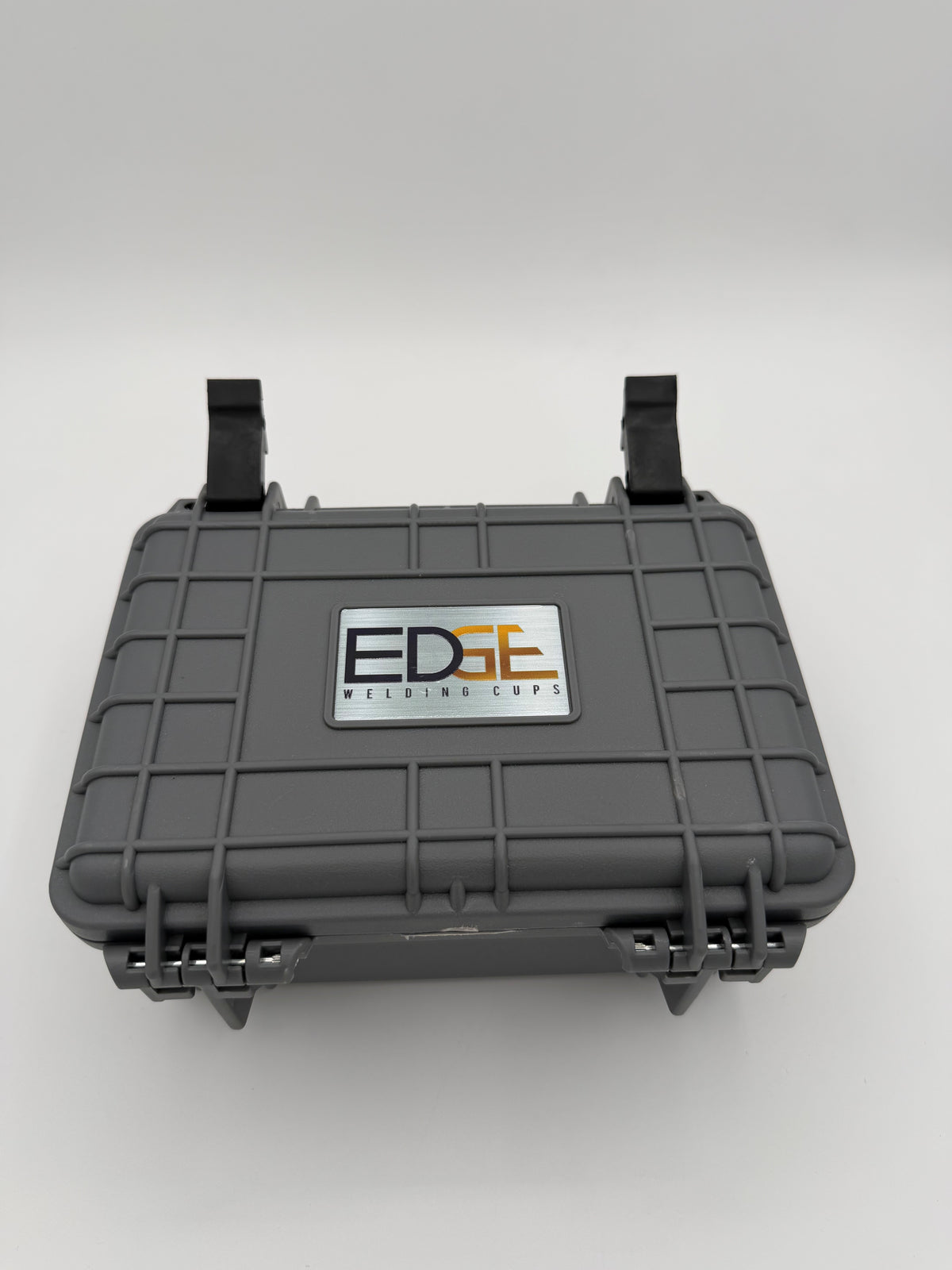

- Protective storage case
- Genuine EDGE™ #12 Short Laminar Flow Pyrex TIG Cup
- Genuine EDGE™ #15 Short Laminar Flow Pyrex TIG Cup
- Genuine EDGE™ #18 Short Laminar Flow Pyrex TIG Cup
- Genuine EDGE™ #21 Short Laminar Flow Pyrex TIG Cup
- Genuine EDGE™ #23 Laminar Flow Pyrex TIG Cup
- Genuine EDGE™ GL-A aluminum adapter with matched O-rings
- 2 Series gas lens and collet for WP-9/WP-20/WP-25
- 4 Series Stubby gas lens and collet for WP-17/WP-18/WP-26
- PTFE thermal spacers for WP-9/WP-20/WP-25
- One additional replacement Genuine EDGE™ Diffuser for each cup size
Gas lenses, collets, and replacement diffusers are matched to the tungsten size selected when ordering.
5/32 tungsten configurations are available upon request for compatible WP-17/WP-18/WP-26 applications using the 4 Series Stubby platform.
Tungsten extension and shielding gas requirements vary with material, joint configuration, torch angle, environmental conditions, welding parameters, and equipment. Values shown are recommended starting points and may require adjustment for the application.
Genuine EDGE™ TIG cups are individually handcrafted in North Carolina, USA. Minor dimensional and cosmetic variations are natural characteristics of hand-formed glass.
