Everlast Typhoon 330 – Advanced AC/DC TIG Welder
The Everlast Typhoon 330 is a top-tier AC/DC TIG welder for welders who want control, power, and flexibility without a complicated interface.
Built on Everlast's next-generation platform, this machine delivers advanced features often found in much higher amperage systems while staying intuitive and easy to use.
Why This Machine Stands Out
- True 330A Output – More power than typical 300A machines with a strong 40% duty cycle
- Advanced AC/DC Control – Fine-tune arc characteristics for aluminum, stainless, and exotic materials
- Simple Interface – Large 5.1" HD screen with all settings visible at a glance
- Professional Performance – Designed for fabrication shops, advanced users, and demanding applications
Everlast Typhoon 330 Control Without Complexity

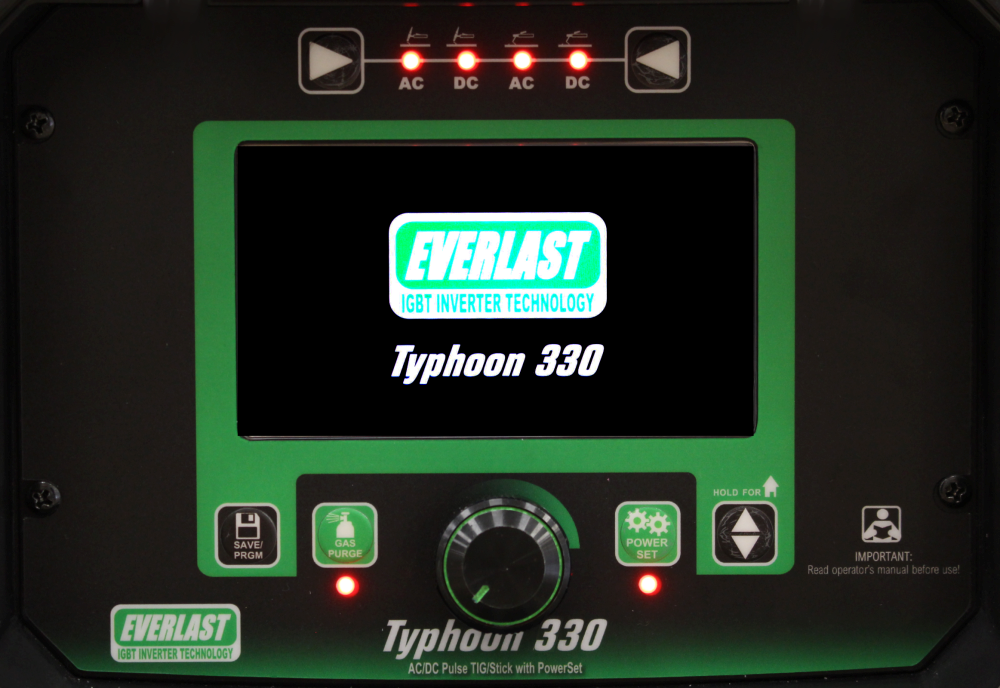

The typhoon platform uses a large 5.1" HD color LCD screen so you can view and adjust welding parameters on a single page.
That layout reduces menu diving and hidden settings. Setup feels faster and more direct when switching between jobs.
Next-Level AC Performance
The 330 sets a new standard for aluminum welding with precise, user-focused control.

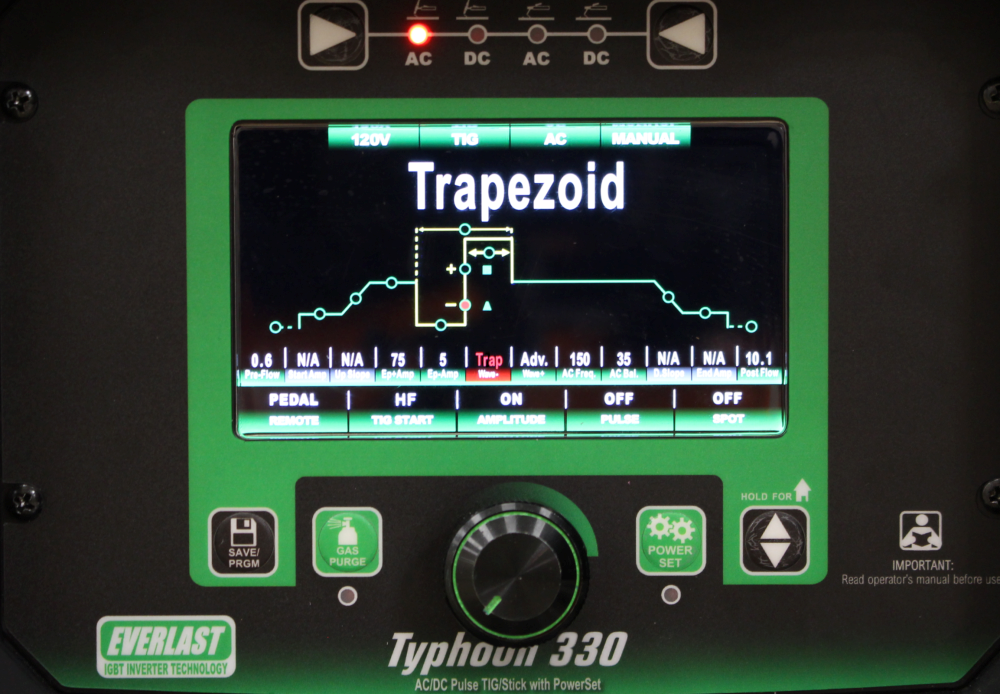

- 5 AC Waveforms – Advanced Square, Soft Square, Triangle, Sine, and industry-first Trapezoid
- Split Waveform Control – Customize each half of the AC cycle independently
- Independent Amplitude Control – Adjust EN and EP amperage separately
- AC Frequency up to 400Hz – Increased arc focus and control
Advanced Pulse Technology
- DC Pulse up to 999.9 Hz – Maximum control on thin materials
- AC Pulse up to 400 Hz
- Advanced AC Pulse Mode – Combines AC and DC negative for deeper penetration
This pulse capability can deliver performance comparable to much higher amperage machines in certain applications.
Power & Duty Cycle
- 330A TIG Output @ 40% Duty Cycle
- 270A @ 60% Duty Cycle
- 210A @ 100% Duty Cycle
- 275A Stick Output

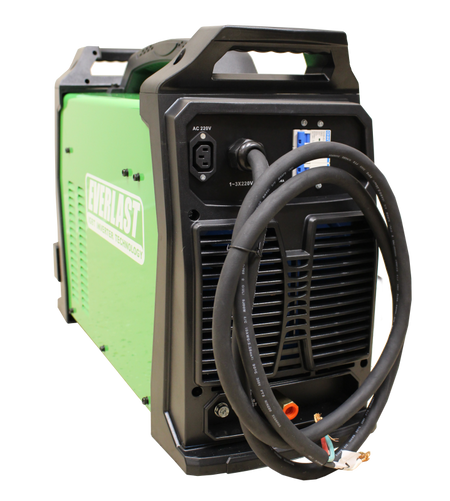

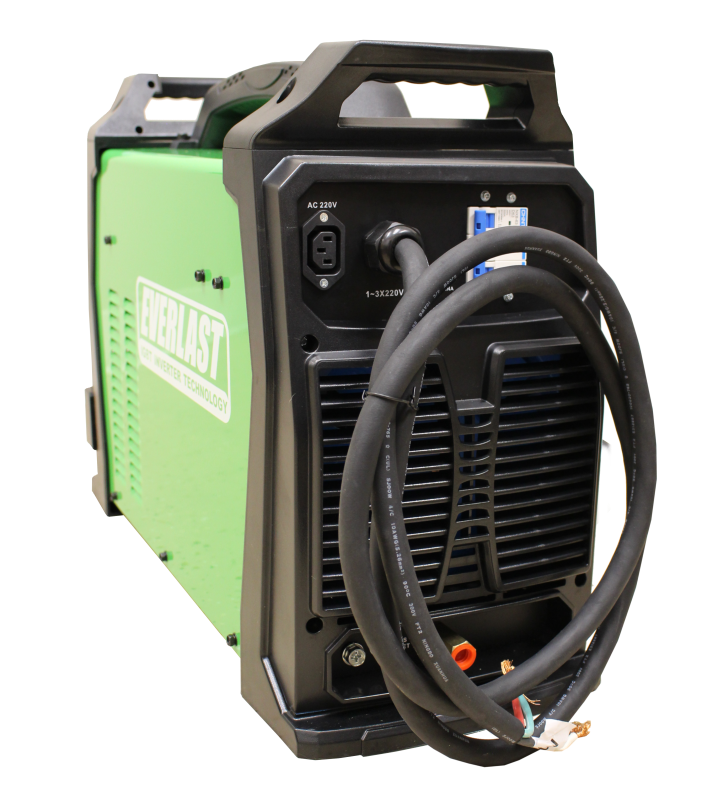

It runs on 240V single or three-phase power without derating, giving you flexibility across different shop setups.
TIG & Stick Performance
TIG Welding
- Smooth, stable arc with excellent control
- True low amp starts (2A DC / 3A AC)
- HF start with no points to maintain
Stick Welding
- Smooth DC arc ideal for E7018
- Capable of E6010 in short/medium arc conditions
- Adjustable arc force and hot start
- AC Stick mode available
Built for Real-World Use
- Fabrication shops
- Aluminum welding
- Stainless, titanium, and exotic materials
- Precision and high-end TIG work
Key Features
- Digital IGBT inverter technology
- 5 AC waveforms including trapezoid
- Split AC waveform control
- Independent EN/EP amplitude control
- AC frequency up to 400Hz
- DC pulse up to 999.9 Hz
- 30 program memory with lock function
- F.A.C.C.T. (Fan and Cooler Control Technology)
- Capacitive HF arc start (no points)

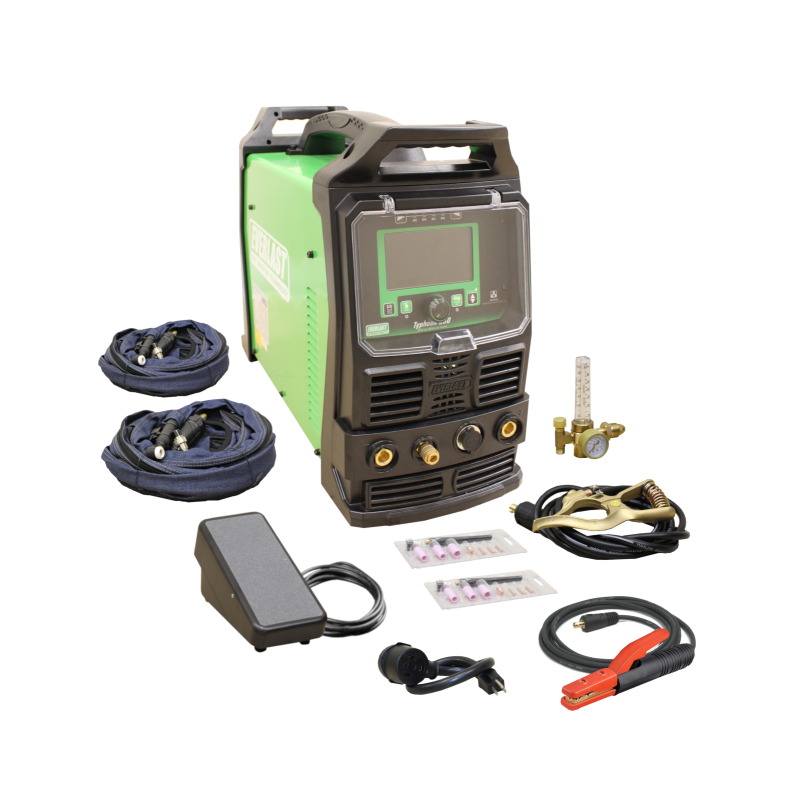

What's Included
- NOVA 9 Series Air-Cooled TIG Torch (12.5 ft)
- NOVA 20 Series Water-Cooled TIG Torch (12.5 ft)
- Foot Pedal (25 ft)
- Torch switch (2T/4T)
- Stick electrode holder
- Ground clamp
- Argon flowmeter
- Input power cable (NEMA 6-50)
- Starter consumable kit
Cooler and cart not included.
EDGE Advantage
At EDGE Welding Supply, we help you build the right system around the Everlast Typhoon 330 for better workflow and visibility.
Pair it with EDGE laminar flow cups, adapters, and components to maximize gas coverage and get more from your setup.
Optional Add-Ons
- Water cooler system
- Welding cart
- EDGE cup and adapter systems
- Tungsten and consumables
