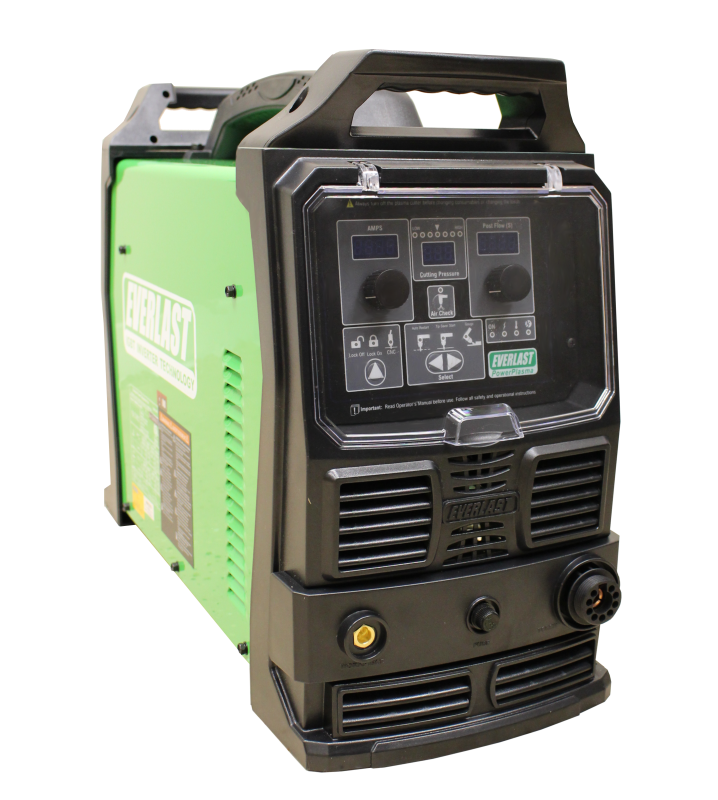

Everlast PowerPlasma 102i - Industrial 120A Plasma Cutter with Pilot Arc

The Everlast PowerPlasma 102i is a professional-grade plasma cutting system designed for industrial applications. With 120 amps of cutting power and advanced pilot arc technology, this machine delivers clean, precise cuts through thick metal with ease.

Key Features

• 120A cutting capacity - cuts up to 1.5" steel
• Pilot arc technology for reliable starts on rusty or painted surfaces
• CNC interface port for automated cutting applications
• Dual voltage capability (220/240V 1-phase or 3-phase)
• Genuine Innotec iPT100 torch included
• Adjustable post-flow timer for extended consumable life
• Gouging capability for versatile metalworking
• Low air pressure safety with OK-to-Cut indicator

Technical Specifications

Type: IGBT

Voltage/Phase: 220/240 V 1/3 Phase

Output Amp/Volt Range: 20-100A/88-120V

OCV: 250V

Input Requirements

Max Inrush (I1MAX) Amps:

• 240V 1 phase: 78A
• 240V 3 phase: 45.2A

Maximum Rated (I1EFF) Input Amps:

• 240V 1 phase: 61A
• 240V 3 phase: 36A

Performance

Duty Cycle At Rated Amps/Volts:

• 60% @ 100A/120V
• 100% @ 80A/112V

Features

Arc Start Type: Blow Back (Piston type)

Pilot Arc: Yes

Torch Type: Genuine Innotec iPT100

CNC Interface Port: Yes

Adjustable Post Flow Timer: Yes

Gouging: Yes

Air Requirements

Recommended Cutting Air Pressure: 65-72 psi

Recommended Compressor Capacity: Minimum of 9 CFM @90 psi, 60-80 gallon tank

OK-to-Cut Indicator/Low Air Pressure Safety: Yes

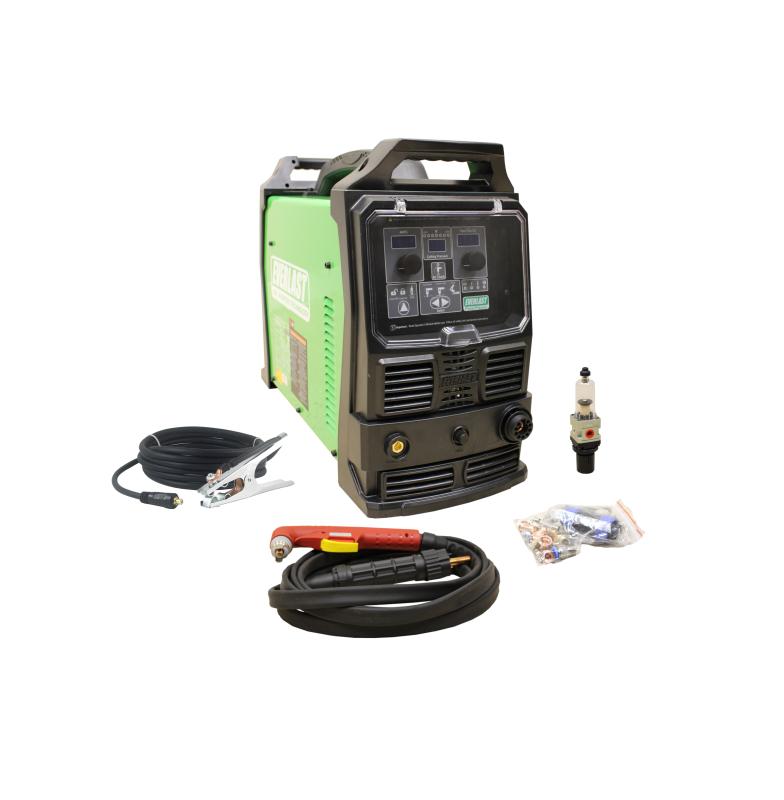

What's Included

• PowerPlasma 102i main unit
• Genuine Innotec iPT100 torch
• Ground clamp and cable
• Air hose
• Consumables kit

Backed by Everlast's industry-leading warranty and support, the PowerPlasma 102i is built to handle the demands of professional fabrication shops and industrial environments.
