The EDGE MAXSHIELD™ 2-Cup TIG Kit – Maximum Shielding Coverage

The EDGE MAXSHIELD™ 2-Cup TIG Kit is built for welders who need greater shielding gas coverage, extended tungsten capability, or additional shielding when welding titanium and other reactive materials.

Combining the #15 and #23 EDGE Laminar Flow Pyrex cups, this kit provides two levels of large-area shielding coverage without requiring a case full of cup sizes you may not need. Components for both 9/20/25 and 17/18/26 series TIG torches are included and matched to your selected tungsten size.

Key Benefits

• Large-Area Gas Coverage – #15 and #23 cups provide two levels of shielding coverage for demanding TIG applications

• Extended Tungsten Capability – Designed for applications where additional tungsten extension is needed while maintaining shielding coverage

• EDGE Laminar Flow Technology – EDGE diffuser technology helps provide controlled, consistent shielding gas flow across the cup outlet

• Reactive-Material Capability – Provides the larger shielding envelope needed for demanding titanium and other reactive-material applications

• Dual Torch Compatibility – Includes components for both 9/20/25 and 17/18/26 series TIG torches

• Matched to Your Tungsten – Gas lenses and collets are supplied for the tungsten size selected when ordering

• PTFE Thermal Spacers Included – Helps reduce heat transfer to the torch body when used with 9/20/25 series torches

• Versatile Applications – Suitable for mild steel, stainless steel, chromoly, titanium, and other reactive materials

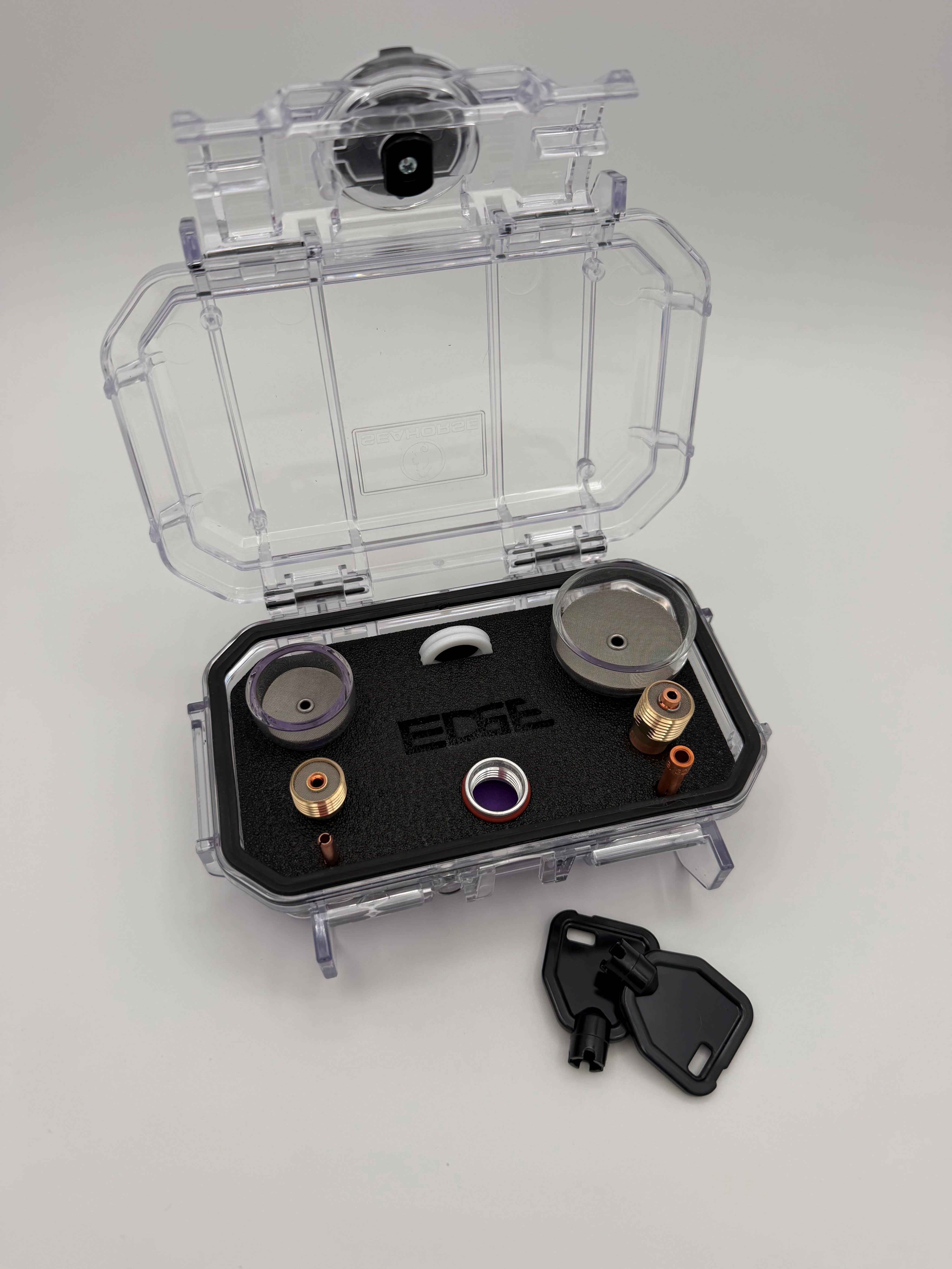

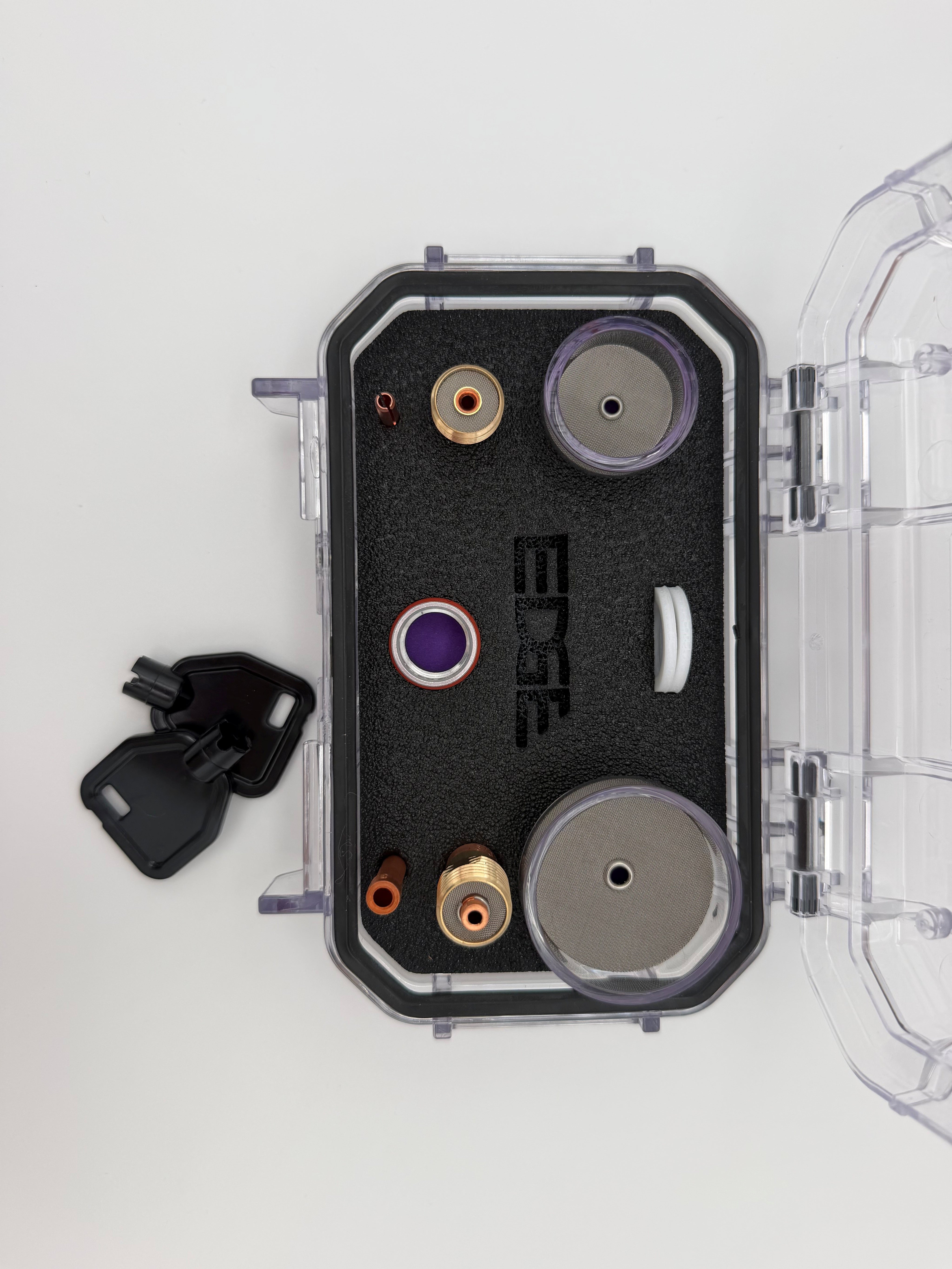

What's Included

• Clear storage case

• 2 EDGE Laminar Flow Pyrex glass cups:

  • #15 Pyrex Laminar Flow Cup – A versatile large-coverage cup for mild steel, stainless steel, chromoly, and other applications where increased shielding coverage or tungsten extension is beneficial. In a controlled environment, tungsten extension of up to approximately 3 inches may be possible. Suggested flowmeter starting point: 30 SCFH.

  • #23 Pyrex Laminar Flow Cup – Designed for demanding applications requiring a substantially larger shielding envelope, including titanium and other reactive materials. In stable, controlled conditions, tungsten extension of up to approximately 4.5 inches may be possible. Suggested flowmeter starting point: 50 SCFH.

• EDGE universal GL adapter with O-rings (fits both torch systems)

• 2 Series gas lens + collet (for WP-9, WP-20, WP-25)

• 4 Series stubby gas lens + collet (for WP-17, WP-18, WP-26)

• PTFE thermal spacers (for use with 9/20/25 series torches)

All components are matched to your selected tungsten size.

Tungsten extension and shielding gas flow requirements vary with material, joint configuration, torch angle, environmental conditions, and welding parameters. The values above are recommended starting points and may require adjustment for your application and particular machine.

EDGE Advantage

• EDGE Laminar Flow Technology for controlled, consistent shielding gas flow

• Large-area shielding coverage for demanding applications

• Clear glass construction for excellent visibility of the weld puddle

• Extended tungsten capability for difficult-to-access welds

• Components for both major TIG torch platforms

• Designed and assembled around real-world welding applications
